DAC7744EBG4

In Stock: 1,126

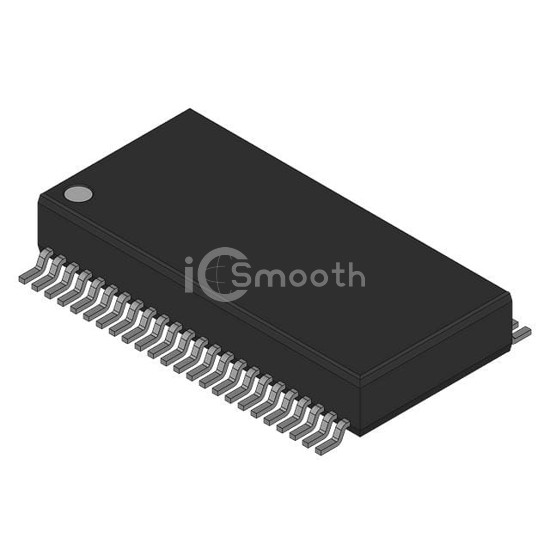

DAC7744EBG4 - Burr Brown - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC7744EBG4 Burr Brown
DAC7744EBG4

Burr Brown

DAC, 1 FUNC, PARALLEL, WORD INPU

DAC7744EBG4 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Burr Brown. DAC, 1 FUNC, PARALLEL, WORD INPU. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 48-BSSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,126

Specifications

16 parameters
Product StatusActive
Number of Bits16
Number of D/A Converters4
Settling Time11µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog±14.25V ~ 15.75V
Voltage - Supply, Digital5V
INL/DNL (LSB)±4 (Max), ±2 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case48-BSSOP (0.295", 7.50mm Width)
Supplier Device Package48-SSOP
Mounting TypeSurface Mount
