DAC7715UG4

In Stock: 3,624

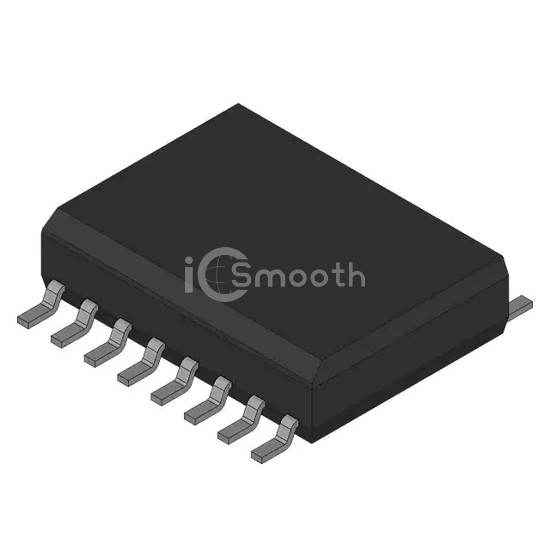

DAC7715UG4 - Burr Brown - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC7715UG4 Burr Brown
DAC7715UG4

Burr Brown

D/A CONVERTER, 1 FUNC, SERIAL IN

DAC7715UG4 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Burr Brown. D/A CONVERTER, 1 FUNC, SERIAL IN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 14.25V ~ 15.75V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 3,624

Specifications

16 parameters
Product StatusActive
Number of Bits12
Number of D/A Converters4
Settling Time10µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceSPI
Reference TypeExternal
Voltage - Supply, Analog±14.25V ~ 15.75V
Voltage - Supply, Digital14.25V ~ 15.75V
INL/DNL (LSB)±2 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SOIC
Mounting TypeSurface Mount
