DAC7613EB

In Stock: 120

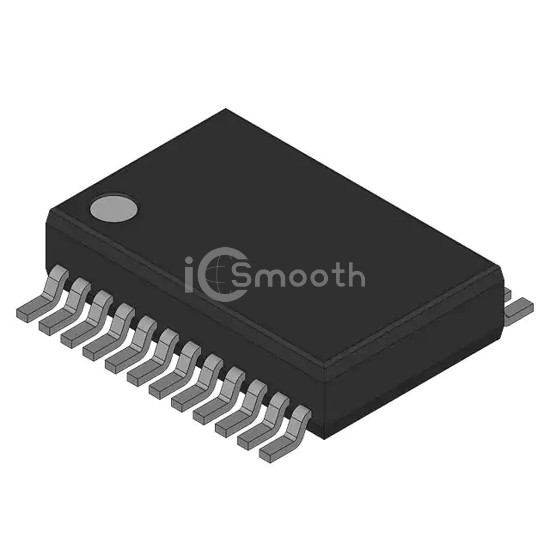

DAC7613EB - Burr Brown - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC7613EB Burr Brown
DAC7613EB

Burr Brown

DAC7613 12-BIT, VOLTAGE OUTPUT D

DAC7613EB is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Burr Brown. DAC7613 12-BIT, VOLTAGE OUTPUT D. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 24-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 120

Specifications

16 parameters
Product StatusActive
Number of Bits12
Number of D/A Converters1
Settling Time10µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceSPI
Reference TypeExternal
Voltage - Supply, Analog±5V
Voltage - Supply, Digital5V
INL/DNL (LSB)±1 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case24-SSOP (0.209", 5.30mm Width)
Supplier Device Package24-SSOP
Mounting TypeSurface Mount
