MSA-0686-TR1G

In Stock: 3,478

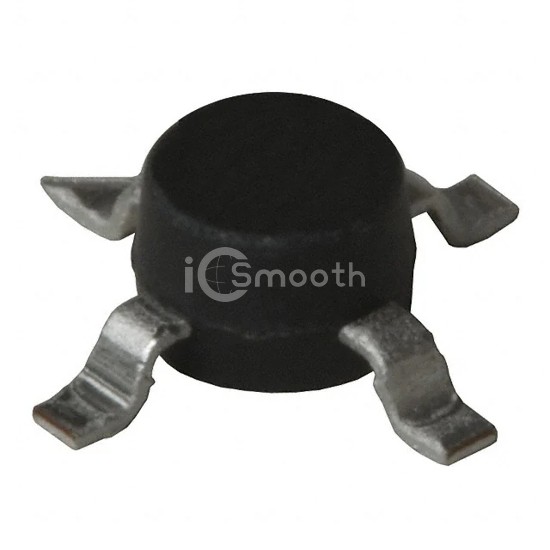

MSA-0686-TR1G - Broadcom Limited - RF Amplifiers
REF: MSA-0686-TR1G Broadcom Limited
MSA-0686-TR1G

Broadcom Limited

IC AMP ISM 0HZ-800MHZ 86 PLAST

MSA-0686-TR1G is a RF Amplifiers manufactured by Broadcom Limited. IC AMP ISM 0HZ-800MHZ 86 PLAST. Key specifications: mounting type Surface Mount, voltage - supply 2.8V ~ 4.2V, package / case SOT-86, current - supply 50mA.

Datasheet Request a Quote

In Stock: 3,478

Specifications

12 parameters
Product StatusObsolete
Frequency0Hz ~ 800MHz
P1dB2dBm
Gain16.5dB ~ 18.5dB
Noise Figure3dB
RF TypeISM, PCS, WLL, 802.16/WiMax
Voltage - Supply2.8V ~ 4.2V
Current - Supply50mA
Test Frequency500MHz
Mounting TypeSurface Mount
Package / CaseSOT-86
Supplier Device Package86 Plastic Package
