Name: HCPL-M701-000E
Brand: Broadcom Limited
SKU: HCPL-M701-000E
Price: 3.34 USD
Availability: InStock

REF: HCPL-M701-000E Broadcom Limited

HCPL-M701-000E

Broadcom Limited

OPTOISO 3.75KV DARLINGTON 6SOIC

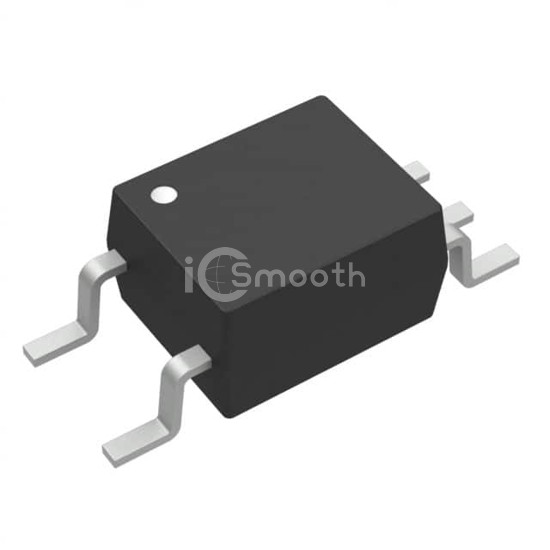

HCPL-M701-000E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 3.75KV DARLINGTON 6SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.4V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 1,275

Tiered Pricing USD

1+ $3.3400 —

10+ $2.4420 -27%

100+ $1.9092 -43%

500+ $1.6754 -50%

1,000+ $1.5993 -52%

2,000+ $1.5349 -54%

5,000+ $1.4647 -56% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	500% @ 1.6mA
Current Transfer Ratio (Max)	2600% @ 1.6mA
Turn On / Turn Off Time (Typ)	500ns, 1µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	18V
Current - Output / Channel	60mA
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package	5-SO
