Name: HCPL-M601-000E
Brand: Broadcom Limited
SKU: HCPL-M601-000E
Price: 3.24 USD
Availability: InStock

REF: HCPL-M601-000E Broadcom Limited

HCPL-M601-000E

Broadcom Limited

OPTOISO 3.75KV OPN COLLECTOR 5SO

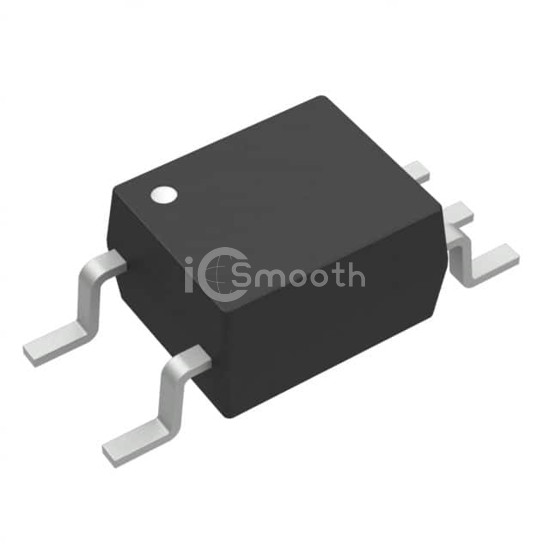

HCPL-M601-000E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 3.75KV OPN COLLECTOR 5SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 2,151

Tiered Pricing USD

1+ $3.2400 —

10+ $2.3650 -27%

100+ $1.8464 -43%

500+ $1.6187 -50%

1,000+ $1.5446 -52%

2,000+ $1.4818 -54%

5,000+ $1.4135 -56% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	5kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	50 mA
Data Rate	10MBd

Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Rise / Fall Time (Typ)	24ns, 10ns
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package	5-SO
