Name: HCPL-817-30DE
Brand: Broadcom Limited
SKU: HCPL-817-30DE
Price: 0.53 USD
Availability: InStock

REF: HCPL-817-30DE Broadcom Limited

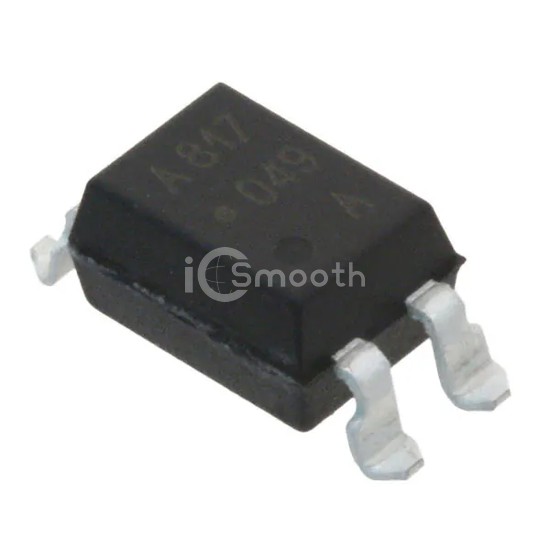

HCPL-817-30DE

Broadcom Limited

OPTOISOLATOR 5KV TRANSISTOR 4SMD

HCPL-817-30DE is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISOLATOR 5KV TRANSISTOR 4SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 3,990

Tiered Pricing USD

1+ $0.5300 —

10+ $0.3680 -31%

100+ $0.2650 -50%

500+ $0.2185 -59%

1,000+ $0.2032 -62%

2,000+ $0.1902 -64%

5,000+ $0.1760 -67%

10,000+ $0.1671 -68%

25,000+ $0.1574 -70% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	300% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
