Name: HCPL-814-000E
Brand: Broadcom Limited
SKU: HCPL-814-000E
Price: 0.49 USD
Availability: InStock

REF: HCPL-814-000E Broadcom Limited

HCPL-814-000E

Broadcom Limited

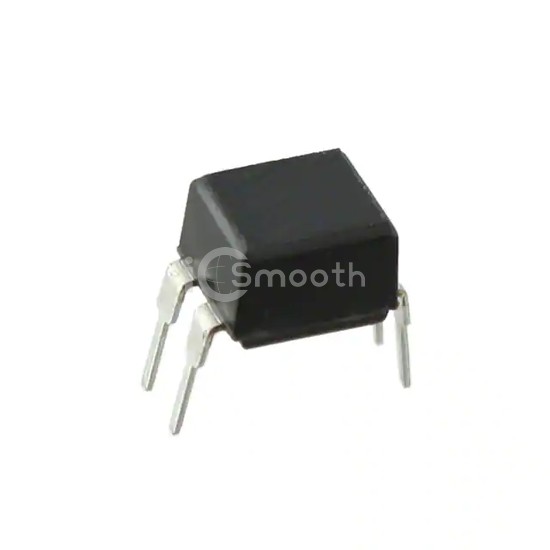

OPTOISOLATOR 5KV TRANSISTOR 4DIP

HCPL-814-000E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISOLATOR 5KV TRANSISTOR 4DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 14,790

Tiered Pricing USD

1+ $0.4900 —

10+ $0.3420 -30%

100+ $0.2465 -50%

500+ $0.2039 -58%

1,000+ $0.1898 -61%

2,000+ $0.1779 -64%

5,000+ $0.1649 -66%

10,000+ $0.1567 -68%

25,000+ $0.1479 -70% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	20% @ 1mA
Current Transfer Ratio (Max)	300% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
