HCPL-6530

In Stock: 3,084
HCPL-6530 - Broadcom Limited - Optoisolators - Transistor, Photovoltaic Output
REF: HCPL-6530 Broadcom Limited
HCPL-6530

Broadcom Limited

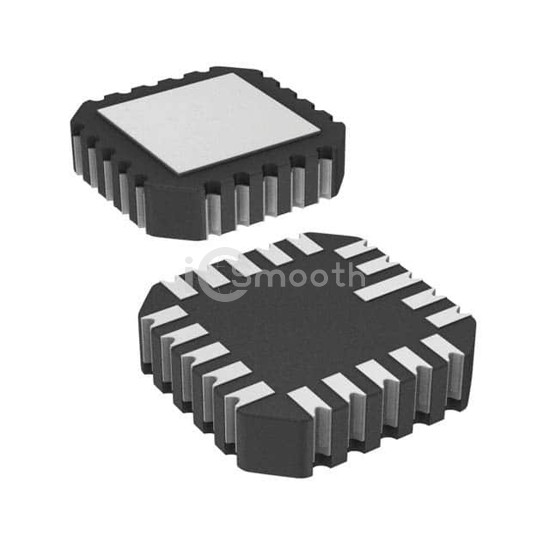

OPTOISO 1.5KV TRANS W/BASE CLCC

HCPL-6530 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 1.5KV TRANS W/BASE CLCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.55V, package / case 20-CLCC.

Datasheet Request a Quote

In Stock: 3,084

Specifications

18 parameters
Product StatusActive
Number of Channels2
Voltage - Isolation1500VDC
Current Transfer Ratio (Min)9% @ 16mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)400ns, 1µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.55V
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)-
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case20-CLCC
Supplier Device Package20-LCCC (8.89x8.89)
