HCPL-643K

In Stock: 2,822

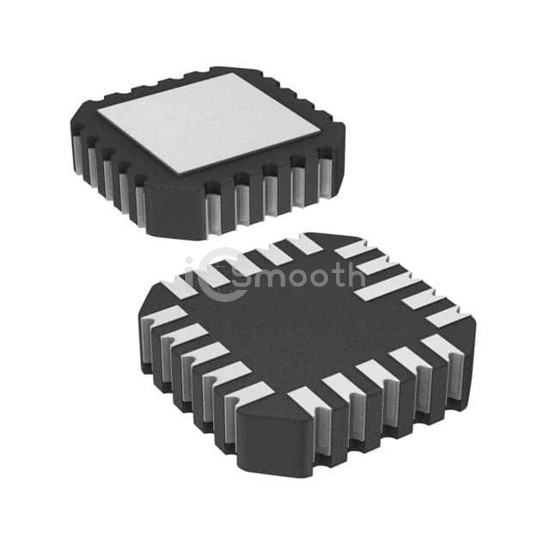

HCPL-643K - Broadcom Limited - Optoisolators - Logic Output
REF: HCPL-643K Broadcom Limited
HCPL-643K

Broadcom Limited

OPTOISO 1.5KV PUSH PULL 20LCCC

HCPL-643K is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 1.5KV PUSH PULL 20LCCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 4.75V ~ 5.25V, package / case 20-CLCC.

Datasheet Request a Quote

In Stock: 2,822

Tiered Pricing USD
5+ $669.9900 —
10+ $653.5940 -2% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels2
Inputs - Side 1/Side 22/0
Voltage - Isolation1500VDC
Common Mode Transient Immunity (Min)500V/µs
Input TypeDC
Output TypePush-Pull, Totem Pole
Current - Output / Channel25 mA
Data Rate40Mbps
Propagation Delay tpLH / tpHL (Max)60ns, 60ns
Rise / Fall Time (Typ)15ns, 10ns
Voltage - Forward (Vf) (Typ)1.35V
Current - DC Forward (If) (Max)10mA
Voltage - Supply4.75V ~ 5.25V
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case20-CLCC
Supplier Device Package20-LCCC (8.89x8.89)
