HCPL-6231

In Stock: 6,896
HCPL-6231 - Broadcom Limited - Optoisolators - Logic Output
REF: HCPL-6231 Broadcom Limited
HCPL-6231

Broadcom Limited

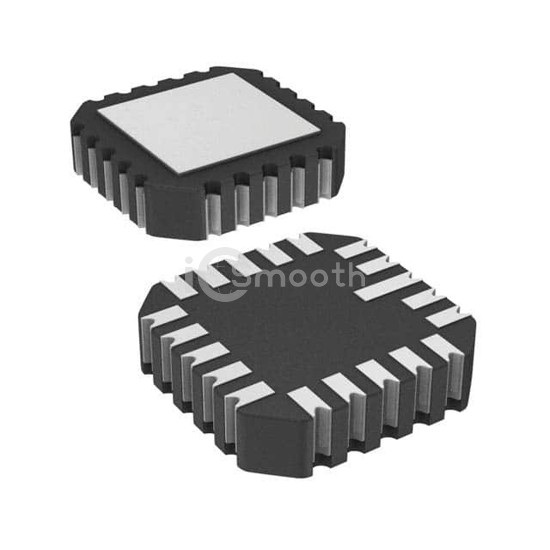

OPTOISO 1.5KV PUSH PULL 20LCCC

HCPL-6231 is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 1.5KV PUSH PULL 20LCCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 4.5V ~ 20V, package / case 20-CLCC.

Datasheet Request a Quote

In Stock: 6,896

Tiered Pricing USD
1+ $264.7900 —
10+ $233.0770 -12% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels2
Inputs - Side 1/Side 22/0
Voltage - Isolation1500VDC
Common Mode Transient Immunity (Min)1kV/µs
Input TypeDC
Output TypePush-Pull, Totem Pole
Current - Output / Channel15 mA
Data Rate5MBd
Propagation Delay tpLH / tpHL (Max)350ns, 350ns
Rise / Fall Time (Typ)45ns, 10ns
Voltage - Forward (Vf) (Typ)1.3V
Current - DC Forward (If) (Max)8mA
Voltage - Supply4.5V ~ 20V
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case20-CLCC
Supplier Device Package20-LCCC (8.89x8.89)
