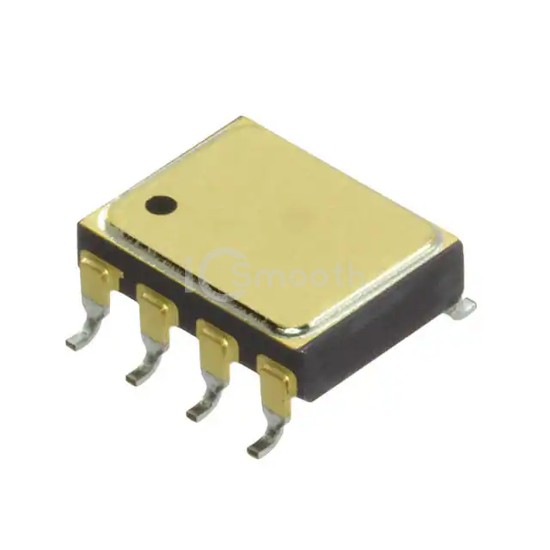

Name: HCPL-5230#300
Brand: Broadcom Limited
SKU: HCPL-5230#300
Price: 161.49 USD
Availability: InStock

REF: HCPL-5230#300 Broadcom Limited

HCPL-5230#300

Broadcom Limited

OPTOISO 1.5KV PUSH PULL 8SMD GW

HCPL-5230#300 is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 1.5KV PUSH PULL 8SMD GW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 4.5V ~ 20V, package / case 8-CSMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,056

Tiered Pricing USD

1+ $161.4900 —

10+ $139.7330 -13% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	1500VDC
Common Mode Transient Immunity (Min)	1kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	15 mA
Data Rate	5MBd

Propagation Delay tpLH / tpHL (Max)	350ns, 350ns
Rise / Fall Time (Typ)	45ns, 10ns
Voltage - Forward (Vf) (Typ)	1.3V
Current - DC Forward (If) (Max)	8mA
Voltage - Supply	4.5V ~ 20V
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-CSMD, Gull Wing
Supplier Device Package	8-SMD Gull Wing
