Name: HCPL-354-000E
Brand: Broadcom Limited
SKU: HCPL-354-000E
Price: 0.74 USD
Availability: InStock

REF: HCPL-354-000E Broadcom Limited

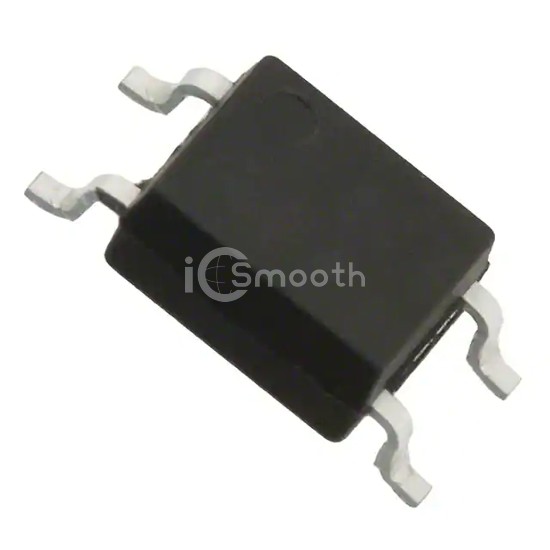

HCPL-354-000E

Broadcom Limited

OPTOISO 3.75KV TRANS 4MINIFLAT

HCPL-354-000E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 3.75KV TRANS 4MINIFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 150

Tiered Pricing USD

1+ $0.7400 —

10+ $0.5120 -31%

100+ $0.3732 -50%

500+ $0.3111 -58%

1,000+ $0.2907 -61% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	20% @ 1mA
Current Transfer Ratio (Max)	400% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-Mini-Flat
