Name: HCPL-315J-000E
Brand: Broadcom Limited
SKU: HCPL-315J-000E
Price: 6.96 USD
Availability: InStock

REF: HCPL-315J-000E Broadcom Limited

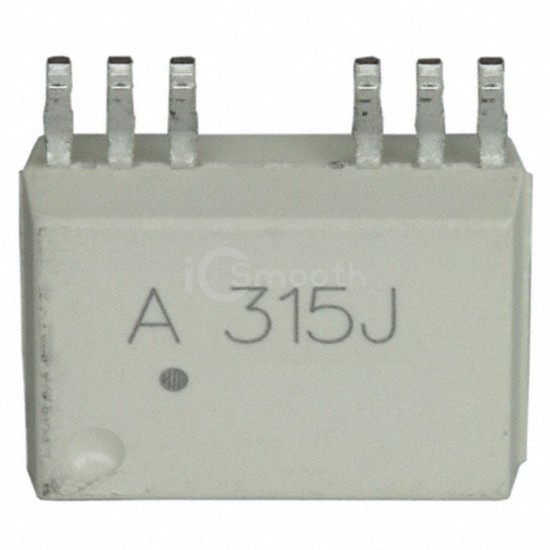

HCPL-315J-000E

Broadcom Limited

OPTOISO 5KV 2CH GATE DRIVER 16SO

HCPL-315J-000E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 5KV 2CH GATE DRIVER 16SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.6V, package / case 16-SOIC (0.295", 7.50mm Width), 12 Leads.

Datasheet Request a Quote

In Stock: 2,827

Tiered Pricing USD

1+ $6.9600 —

45+ $4.5409 -35%

135+ $4.1593 -40%

540+ $3.8007 -45%

1,035+ $3.6696 -47%

2,025+ $3.5543 -49% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	2
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	15kV/µs
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Pulse Width Distortion (Max)	300ns
Rise / Fall Time (Typ)	100ns, 100ns
Current - Output High, Low	500mA, 500mA

Current - Peak Output	600mA
Voltage - Forward (Vf) (Typ)	1.6V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width), 12 Leads
Supplier Device Package	16-SO
Approval Agency	CSA, IEC/EN/DIN, UR
