Name: HCPL-314J-000E
Brand: Broadcom Limited
SKU: HCPL-314J-000E
Price: 4.94 USD
Availability: InStock

REF: HCPL-314J-000E Broadcom Limited

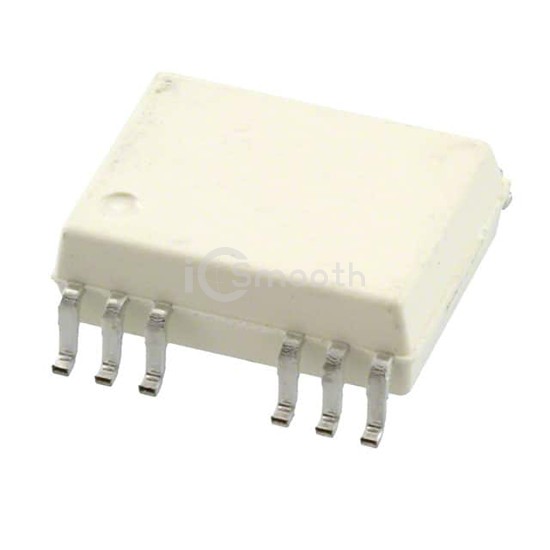

HCPL-314J-000E

Broadcom Limited

OPTOISO 5KV 2CH GATE DRIVER 16SO

HCPL-314J-000E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 5KV 2CH GATE DRIVER 16SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.5V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 2,042

Tiered Pricing USD

1+ $4.9400 —

45+ $3.1416 -36%

135+ $2.8560 -42%

540+ $2.5874 -48%

1,035+ $2.4891 -50%

2,025+ $2.4026 -51% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	2
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	25kV/µs
Propagation Delay tpLH / tpHL (Max)	700ns, 700ns
Pulse Width Distortion (Max)	-
Rise / Fall Time (Typ)	50ns, 50ns
Current - Output High, Low	500mA, -

Current - Peak Output	600mA
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	10V ~ 30V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SO
Approval Agency	CSA, IEC/EN/DIN, UR
