HCPL-268K-300

In Stock: 9,943

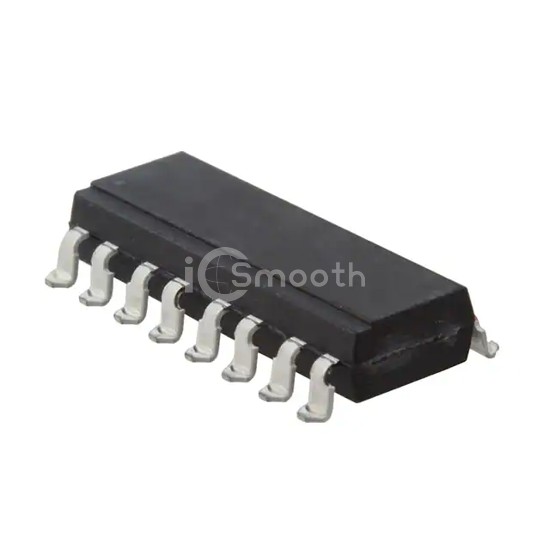

HCPL-268K-300 - Broadcom Limited - Optoisolators - Logic Output
REF: HCPL-268K-300 Broadcom Limited
HCPL-268K-300

Broadcom Limited

OPTOISO 1.5KV OPEN COLL 16DIP GW

HCPL-268K-300 is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 1.5KV OPEN COLL 16DIP GW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 16-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 9,943

Tiered Pricing USD
6+ $574.8283 —
10+ $564.2040 -2% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels2
Inputs - Side 1/Side 22/0
Voltage - Isolation1500VDC
Common Mode Transient Immunity (Min)1kV/µs
Input TypeDC
Output TypeOpen Collector, Schottky Clamped
Current - Output / Channel25 mA
Data Rate10MBd
Propagation Delay tpLH / tpHL (Max)100ns, 100ns
Rise / Fall Time (Typ)35ns, 35ns
Voltage - Forward (Vf) (Typ)1.55V
Current - DC Forward (If) (Max)20mA
Voltage - Supply4.5V ~ 5.5V
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SMD, Gull Wing
Supplier Device Package16-DIP Gull Wing
