Name: HCPL-090J-500E
Brand: Broadcom Limited
SKU: HCPL-090J-500E
Price: 20.03 USD
Availability: InStock

REF: HCPL-090J-500E Broadcom Limited

HCPL-090J-500E

Broadcom Limited

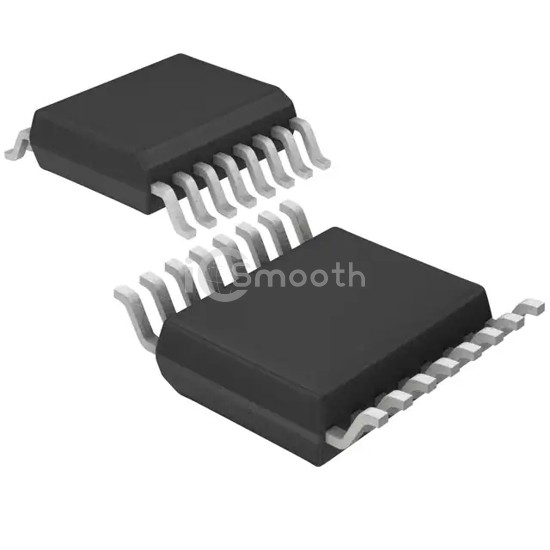

DGTL ISO 2500VRMS 4CH GP 16SOIC

HCPL-090J-500E is a Digital Isolators manufactured by Broadcom Limited. DGTL ISO 2500VRMS 4CH GP 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 3V ~ 5.5V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 8,245

Tiered Pricing USD

1+ $20.0300 —

10+ $15.9850 -20%

25+ $14.9752 -25%

100+ $13.8651 -31%

250+ $13.3359 -33%

500+ $13.0170 -35% BEST

Specifications

18 parameters

Product Status	Active
Technology	GMR (Giant Magnetoresistive)
Type	General Purpose
Isolated Power	No
Number of Channels	4
Inputs - Side 1/Side 2	4/0
Channel Type	Unidirectional
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	15kV/µs

Data Rate	110MBd
Propagation Delay tpLH / tpHL (Max)	15ns, 15ns
Pulse Width Distortion (Max)	3ns
Rise / Fall Time (Typ)	1ns, 1ns
Voltage - Supply	3V ~ 5.5V
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
