Name: HCNW4504-000E
Brand: Broadcom Limited
SKU: HCNW4504-000E
Price: 3.10 USD
Availability: InStock

REF: HCNW4504-000E Broadcom Limited

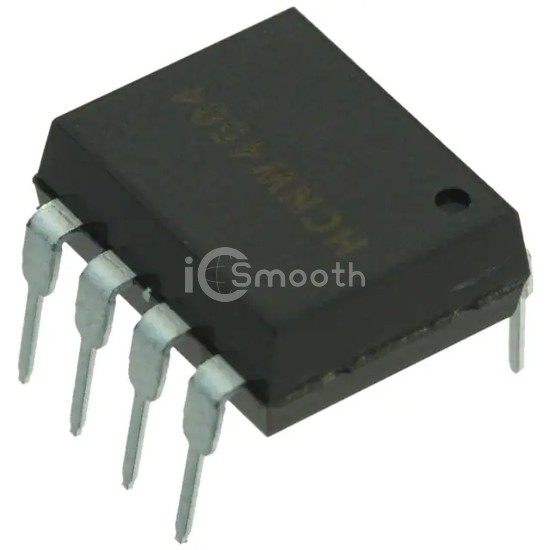

HCNW4504-000E

Broadcom Limited

OPTOISOLATOR 5KV TRANSISTOR 8DIP

HCNW4504-000E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISOLATOR 5KV TRANSISTOR 8DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage - forward (vf) (typ) 1.59V, package / case 8-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 2,551

Tiered Pricing USD

1+ $3.1000 —

42+ $1.9414 -37%

126+ $1.7512 -44%

504+ $1.5720 -49%

1,008+ $1.5024 -52%

2,016+ $1.4625 -53% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	19% @ 16mA
Current Transfer Ratio (Max)	63% @ 16mA
Turn On / Turn Off Time (Typ)	200ns, 300ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	20V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.59V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 85°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.400", 10.16mm)
Supplier Device Package	8-DIP
