Name: HCNR201#050
Brand: Broadcom Limited
SKU: HCNR201#050
Price: 4.26 USD
Availability: InStock

REF: HCNR201#050 Broadcom Limited

HCNR201#050

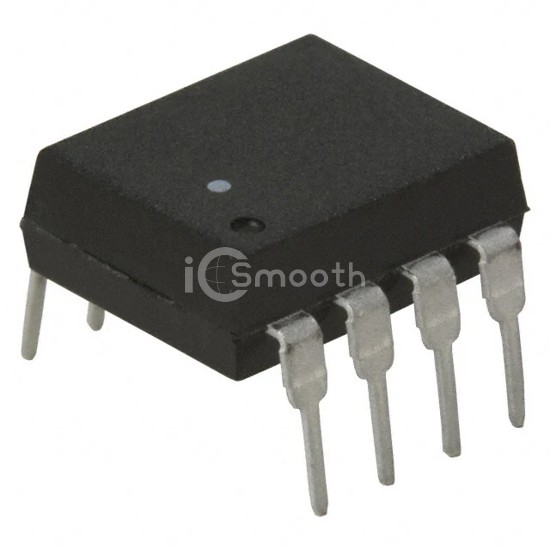

OPTOISO 5KV LINEAR PHVOLT 8DIP

HCNR201#050 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 5KV LINEAR PHVOLT 8DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.6V, package / case 8-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 9,056

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	0.36% @ 10mA
Current Transfer Ratio (Max)	0.72% @ 10mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Photovoltaic, Linearized

Voltage - Output (Max)	-
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.6V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.400", 10.16mm)
Supplier Device Package	8-DIP
