Name: CNY17-3-300E
Brand: Broadcom Limited
SKU: CNY17-3-300E
Price: 0.72 USD
Availability: InStock

REF: CNY17-3-300E Broadcom Limited

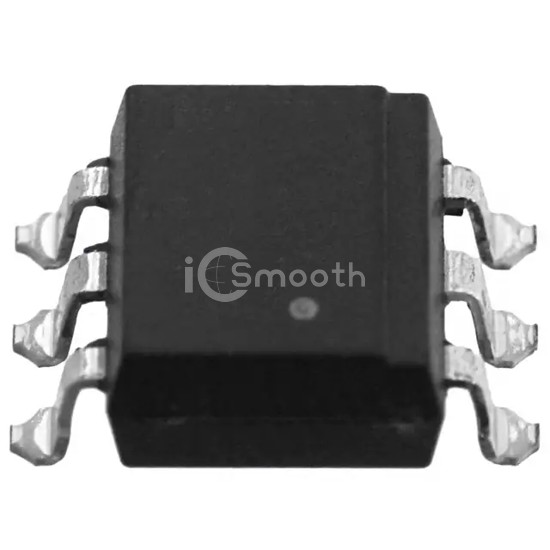

CNY17-3-300E

OPTOISO 5KV TRANS W/BASE 6SMD

CNY17-3-300E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 5KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.4V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,325

Tiered Pricing USD

1+ $0.7200 —

65+ $0.3815 -47%

130+ $0.3498 -51%

520+ $0.2996 -58%

1,040+ $0.2800 -61%

2,015+ $0.2640 -63%

5,005+ $0.2457 -66%

10,010+ $0.2342 -67%

25,025+ $0.2217 -69% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	200% @ 10mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	5µs, 5µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	70V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
