Name: CNY17-2-W00E
Brand: Broadcom Limited
SKU: CNY17-2-W00E
Price: 0.23 USD
Availability: InStock

REF: CNY17-2-W00E Broadcom Limited

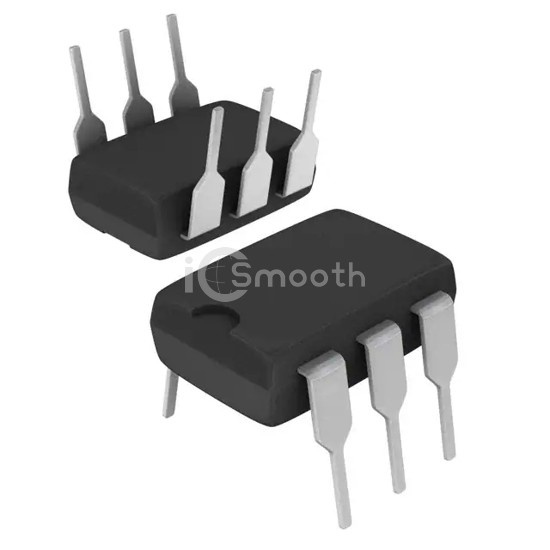

CNY17-2-W00E

OPTOISO 5KV TRANS W/BASE 6DIP

CNY17-2-W00E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 5KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.4V, package / case 6-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 7,853

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	63% @ 10mA
Current Transfer Ratio (Max)	125% @ 10mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	5µs, 5µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	70V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.400", 10.16mm)
Supplier Device Package	6-DIP
