ACSL-6420-06TE

In Stock: 7,583

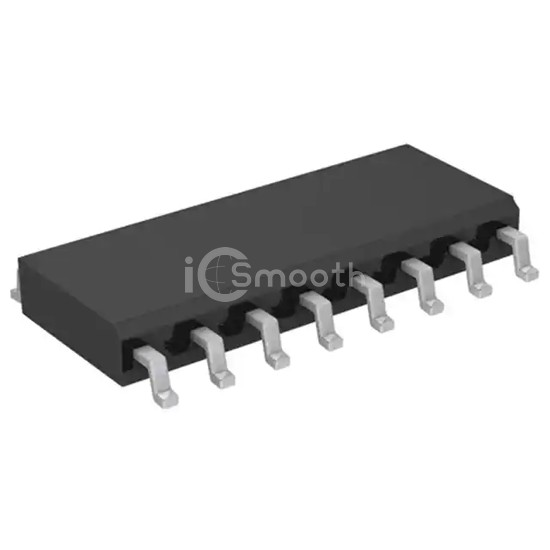

ACSL-6420-06TE - Broadcom Limited - Optoisolators - Logic Output
REF: ACSL-6420-06TE Broadcom Limited
ACSL-6420-06TE

Broadcom Limited

OPTOISO 2.5KV 4CH OPEN COLL 16SO

ACSL-6420-06TE is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 2.5KV 4CH OPEN COLL 16SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - supply 3V ~ 5.5V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 7,583

Specifications

18 parameters
Product StatusActive
Number of Channels4
Inputs - Side 1/Side 22/2
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)10kV/µs
Input TypeDC
Output TypeOpen Collector, Schottky Clamped
Current - Output / Channel50 mA
Data Rate15MBd
Propagation Delay tpLH / tpHL (Max)100ns, 100ns
Rise / Fall Time (Typ)30ns, 12ns
Voltage - Forward (Vf) (Typ)1.52V
Current - DC Forward (If) (Max)15mA
Voltage - Supply3V ~ 5.5V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SOIC
