Name: ACPL-M49U-000E
Brand: Broadcom Limited
SKU: ACPL-M49U-000E
Price: 3.11 USD
Availability: InStock

REF: ACPL-M49U-000E Broadcom Limited

ACPL-M49U-000E

Broadcom Limited

OPTOISOLATOR 3.75KV TRANSISTOR

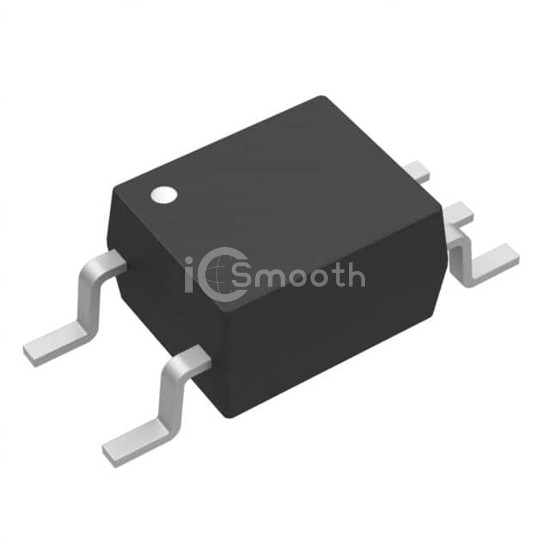

ACPL-M49U-000E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISOLATOR 3.75KV TRANSISTOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.5V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 4,747

Tiered Pricing USD

1+ $3.1100 —

10+ $2.2640 -27%

100+ $1.7640 -43%

500+ $1.5443 -50%

1,000+ $1.4728 -53%

2,000+ $1.4123 -55%

5,000+ $1.3463 -57% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	32% @ 10mA
Current Transfer Ratio (Max)	80% @ 10mA
Turn On / Turn Off Time (Typ)	20µs, 20µs (Max)
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	20V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package	5-SO
