ACPL-M43T-560E

In Stock: 7,604
ACPL-M43T-560E - Broadcom Limited - Optoisolators - Transistor, Photovoltaic Output
REF: ACPL-M43T-560E Broadcom Limited

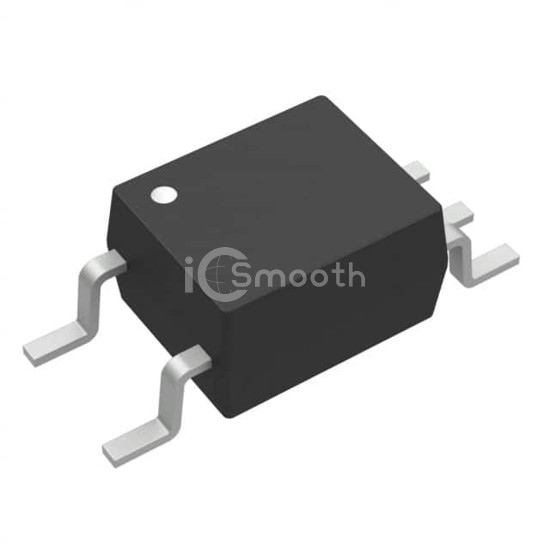

ACPL-M43T-560E

Broadcom Limited

OPTOISOLATOR 4KV TRANSISTOR

ACPL-M43T-560E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISOLATOR 4KV TRANSISTOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.55V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 7,604

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation4000Vrms
Current Transfer Ratio (Min)32% @ 10mA
Current Transfer Ratio (Max)100% @ 10mA
Turn On / Turn Off Time (Typ)150ns, 500ns
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.55V
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package5-SO
