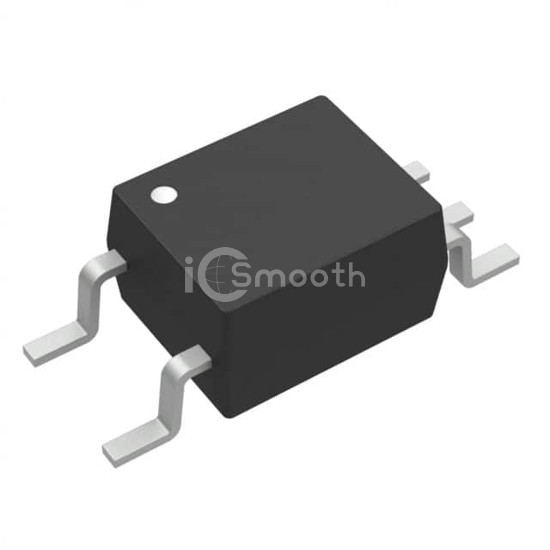

Name: ACPL-M21L-560E
Brand: Broadcom Limited
SKU: ACPL-M21L-560E
Price: 1.34 USD
Availability: InStock

REF: ACPL-M21L-560E Broadcom Limited

ACPL-M21L-560E

Broadcom Limited

OPTOISO 3.75KV PUSH PULL 5SO

ACPL-M21L-560E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 3.75KV PUSH PULL 5SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 2.7V ~ 5.5V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 9,385

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	25kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	5MBd

Propagation Delay tpLH / tpHL (Max)	250ns, 250ns
Rise / Fall Time (Typ)	11ns, 11ns
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	8mA
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package	5-SO
