Name: ACPL-K70A-500E
Brand: Broadcom Limited
SKU: ACPL-K70A-500E
Price: 3.71 USD
Availability: InStock

REF: ACPL-K70A-500E Broadcom Limited

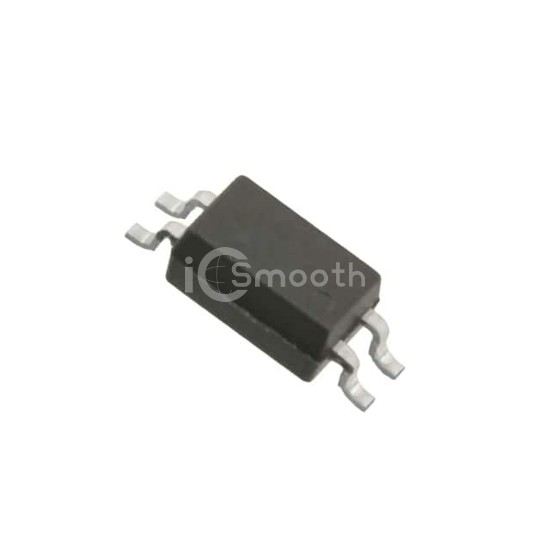

ACPL-K70A-500E

Broadcom Limited

OPTOCOUPLER(100KBD),T/R+LF

ACPL-K70A-500E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOCOUPLER(100KBD),T/R+LF. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.4V, package / case 8-SOIC (0.268", 6.81mm Width).

Datasheet Request a Quote

In Stock: 9,120

Tiered Pricing USD

1+ $3.7100 —

10+ $2.7220 -27%

100+ $2.1392 -42%

500+ $1.8835 -49% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	800% @ 40µA
Current Transfer Ratio (Max)	25000% @ 40µA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Darlington with Base

Voltage - Output (Max)	18V
Current - Output / Channel	60mA
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.268", 6.81mm Width)
Supplier Device Package	8-SO Stretched
