Name: ACPL-K49T-560E
Brand: Broadcom Limited
SKU: ACPL-K49T-560E
Price: 3.75 USD
Availability: InStock

REF: ACPL-K49T-560E Broadcom Limited

ACPL-K49T-560E

Broadcom Limited

OPTOISOLATOR 5KV TRANSISTOR

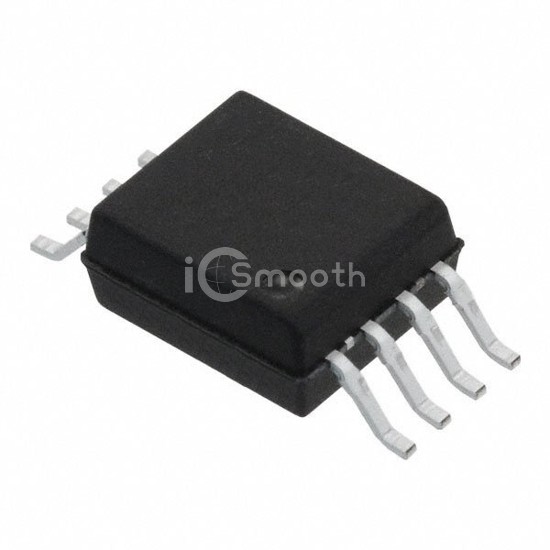

ACPL-K49T-560E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISOLATOR 5KV TRANSISTOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.5V, package / case 8-SOIC (0.268", 6.81mm Width).

Datasheet Request a Quote

In Stock: 6,710

Tiered Pricing USD

1+ $3.7500 —

10+ $2.7570 -26%

100+ $2.1678 -42%

500+ $1.9094 -49% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	32% @ 10mA
Current Transfer Ratio (Max)	100% @ 10mA
Turn On / Turn Off Time (Typ)	20µs, 20µs (Max)
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	20V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.268", 6.81mm Width)
Supplier Device Package	8-SO Stretched
