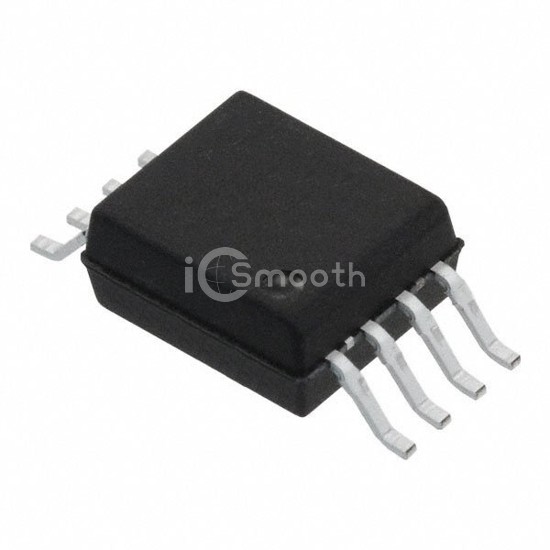

Name: ACPL-K376-000E
Brand: Broadcom Limited
SKU: ACPL-K376-000E
Price: 6.69 USD
Availability: InStock

REF: ACPL-K376-000E Broadcom Limited

ACPL-K376-000E

Broadcom Limited

OPTOISO 5KV DARL 8-SO STRETCHED

ACPL-K376-000E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 5KV DARL 8-SO STRETCHED. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 8-SOIC (0.268", 6.81mm Width), current - output / channel 30mA.

Datasheet Request a Quote

In Stock: 7,553

Tiered Pricing USD

1+ $6.6900 —

80+ $4.1516 -38%

160+ $3.9386 -41%

560+ $3.6328 -46%

1,040+ $3.5126 -47%

2,000+ $3.4037 -49% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	6.3µs, 6.4µs
Rise / Fall Time (Typ)	24µs, 0.4µs
Input Type	AC, DC
Output Type	Darlington

Voltage - Output (Max)	20V
Current - Output / Channel	30mA
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.268", 6.81mm Width)
Supplier Device Package	8-SO Stretched
