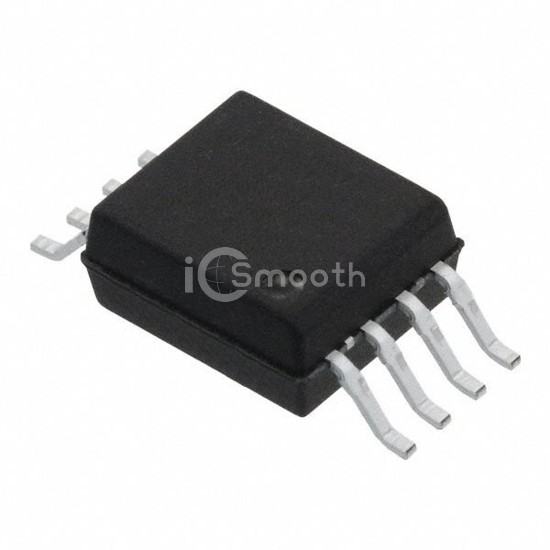

Name: ACPL-C78A-000E
Brand: Broadcom Limited
SKU: ACPL-C78A-000E
Price: 13.19 USD
Availability: InStock

REF: ACPL-C78A-000E Broadcom Limited

ACPL-C78A-000E

Broadcom Limited

IC OPAMP ISOLATION 1 CIRC 8SO

ACPL-C78A-000E is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Broadcom Limited. IC OPAMP ISOLATION 1 CIRC 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-SOIC (0.268", 6.81mm Width), current - supply 11mA.

Datasheet Request a Quote

In Stock: 4,069

Specifications

17 parameters

Product Status	Active
Amplifier Type	Isolation
Number of Circuits	1
Output Type	Differential
Slew Rate	-
Gain Bandwidth Product	-
-3db Bandwidth	100 kHz
Current - Input Bias	-
Voltage - Input Offset	300 µV

Current - Supply	11mA
Current - Output / Channel	18.6 mA
Voltage - Supply Span (Min)	4.5 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.268", 6.81mm Width)
Supplier Device Package	8-SO Stretched
