Name: ACPL-5700L
Brand: Broadcom Limited
SKU: ACPL-5700L
Price: 116.96 USD
Availability: InStock

REF: ACPL-5700L Broadcom Limited

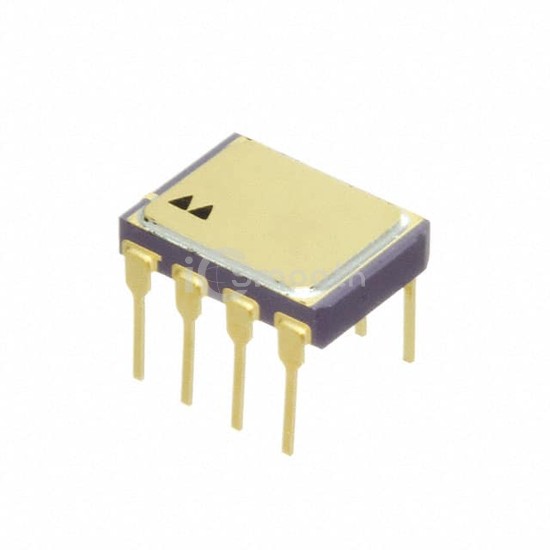

ACPL-5700L

OPTOISO 1.5KV DARLINGTON 8-DIP

ACPL-5700L is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 1.5KV DARLINGTON 8-DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.4V, package / case 8-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 8,643

Tiered Pricing USD

1+ $116.9600 —

10+ $99.9960 -15%

100+ $90.2644 -23% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	1500VDC
Current Transfer Ratio (Min)	200% @ 5mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	2µs, 6µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	20V
Current - Output / Channel	40mA
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	10 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	8-CDIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
