Name: ACPL-563KL-300
Brand: Broadcom Limited
SKU: ACPL-563KL-300
Price: 608.87 USD
Availability: InStock

REF: ACPL-563KL-300 Broadcom Limited

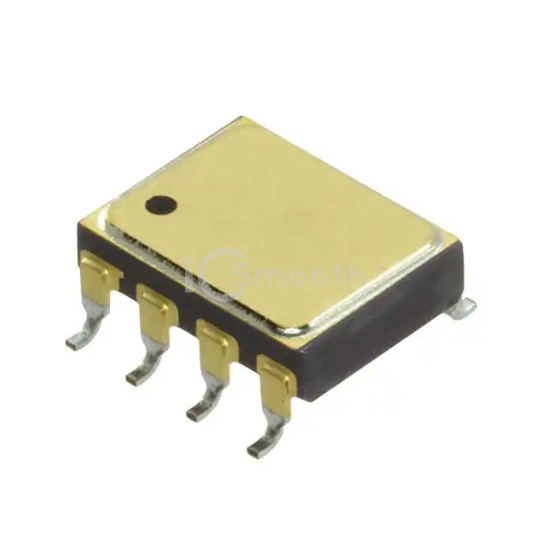

ACPL-563KL-300

Broadcom Limited

OPTOISO 1.5KV OPEN COLL 8DIP GW

ACPL-563KL-300 is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 1.5KV OPEN COLL 8DIP GW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 3V ~ 3.6V, package / case 8-CSMD, Gull Wing.

Datasheet Request a Quote

In Stock: 8,554

Tiered Pricing USD

6+ $608.8733 —

10+ $597.7970 -2% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	1500VDC
Common Mode Transient Immunity (Min)	1kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	25 mA
Data Rate	10MBd

Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Rise / Fall Time (Typ)	20ns, 8ns
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	3V ~ 3.6V
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-CSMD, Gull Wing
Supplier Device Package	8-DIP Gull Wing
