ACPL-5160-300

In Stock: 7,126

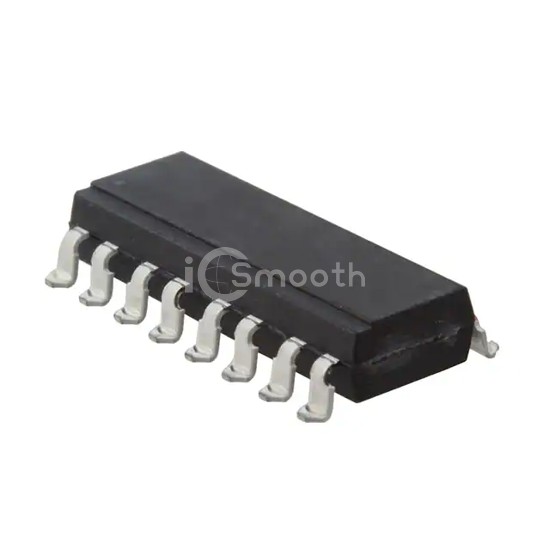

ACPL-5160-300 - Broadcom Limited - Isolators - Gate Drivers
REF: ACPL-5160-300 Broadcom Limited
ACPL-5160-300

Broadcom Limited

OPTOISO 1.5KV GATE DRVR 16SMDGW

ACPL-5160-300 is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 1.5KV GATE DRVR 16SMDGW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 16-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 7,126

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation1500VDC
Common Mode Transient Immunity (Min)9kV/µs
Propagation Delay tpLH / tpHL (Max)500ns, 500ns
Pulse Width Distortion (Max)300ns
Rise / Fall Time (Typ)100ns, 100ns
Current - Output High, Low2A, 2A
Current - Peak Output2.5A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply15V ~ 30V
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SMD, Gull Wing
Supplier Device Package16-SMD Gull Wing
Approval Agency-
