ACPL-38JT-500E

In Stock: 4,679
ACPL-38JT-500E - Broadcom Limited - Isolators - Gate Drivers
REF: ACPL-38JT-500E Broadcom Limited
ACPL-38JT-500E

Broadcom Limited

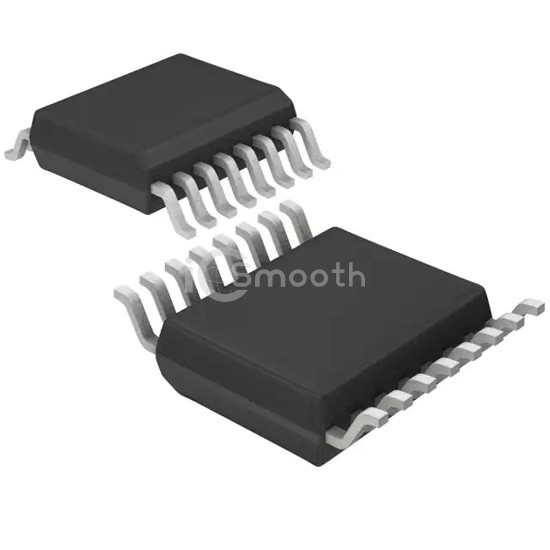

OPTOISO 5KV 1CH GATE DRIVER 16SO

ACPL-38JT-500E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 5KV 1CH GATE DRIVER 16SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-SOIC (0.295", 7.50mm Width), approval agency CSA, IEC/EN/DIN, UR.

Datasheet Request a Quote

In Stock: 4,679

Tiered Pricing USD
850+ $4.7054 —
1,700+ $4.5569 -3% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)15kV/µs
Propagation Delay tpLH / tpHL (Max)500ns, 500ns
Pulse Width Distortion (Max)300ns
Rise / Fall Time (Typ)100ns, 100ns
Current - Output High, Low2A, 2A
Current - Peak Output2.5A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SO
Approval AgencyCSA, IEC/EN/DIN, UR
