ACPL-36JV-500E

In Stock: 4,711

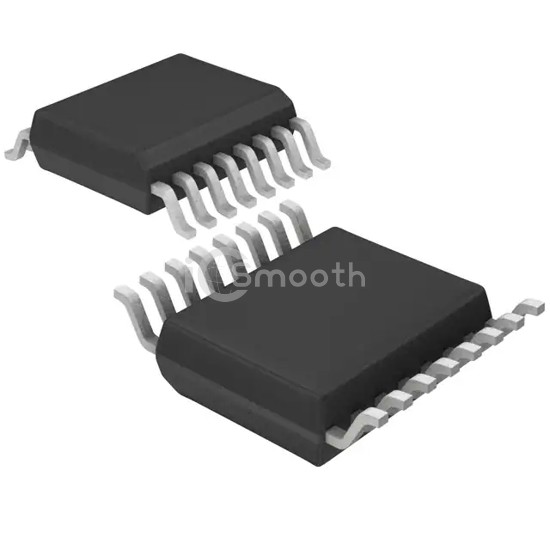

ACPL-36JV-500E - Broadcom Limited - Isolators - Gate Drivers
REF: ACPL-36JV-500E Broadcom Limited
ACPL-36JV-500E

Broadcom Limited

OPTOISO 3.75KV 1CH GATE DVR 16SO

ACPL-36JV-500E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 3.75KV 1CH GATE DVR 16SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 4,711

Tiered Pricing USD
1+ $8.5900 —
10+ $6.5520 -24%
100+ $5.3577 -38% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)15kV/µs
Propagation Delay tpLH / tpHL (Max)500ns, 500ns
Pulse Width Distortion (Max)300ns
Rise / Fall Time (Typ)100ns, 100ns
Current - Output High, Low2A, 2A
Current - Peak Output2.5A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SO
Approval Agency-
