Name: ACPL-352J-000E
Brand: Broadcom Limited
SKU: ACPL-352J-000E
Price: 7.73 USD
Availability: InStock

REF: ACPL-352J-000E Broadcom Limited

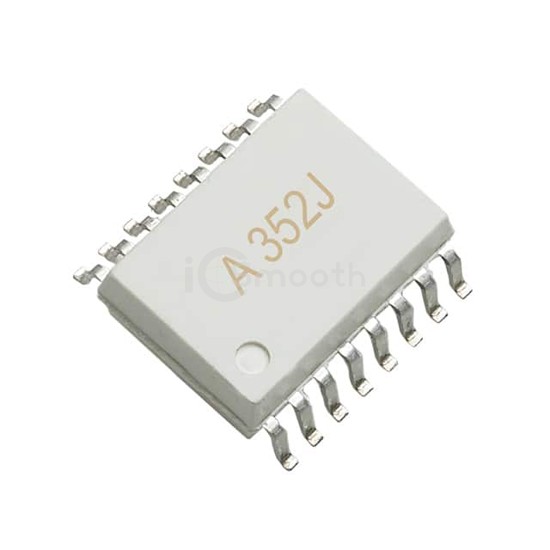

ACPL-352J-000E

Broadcom Limited

OPTOISO 5KV 1CH GATE DRIVER 16SO

ACPL-352J-000E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 5KV 1CH GATE DRIVER 16SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.55V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 3,157

Tiered Pricing USD

1+ $7.7300 —

45+ $5.0882 -34%

135+ $4.6710 -40%

540+ $4.2794 -45%

1,035+ $4.1361 -46%

2,025+ $4.0102 -48% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	100kV/µs
Propagation Delay tpLH / tpHL (Max)	150ns, 150ns
Pulse Width Distortion (Max)	50ns
Rise / Fall Time (Typ)	37ns, 30ns
Current - Output High, Low	4.5A, 4.5A

Current - Peak Output	5A
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SO
Approval Agency	CSA, IEC/EN/DIN, UR
