ACPL-32JT-500E

In Stock: 1,663
ACPL-32JT-500E - Broadcom Limited - Isolators - Gate Drivers
REF: ACPL-32JT-500E Broadcom Limited

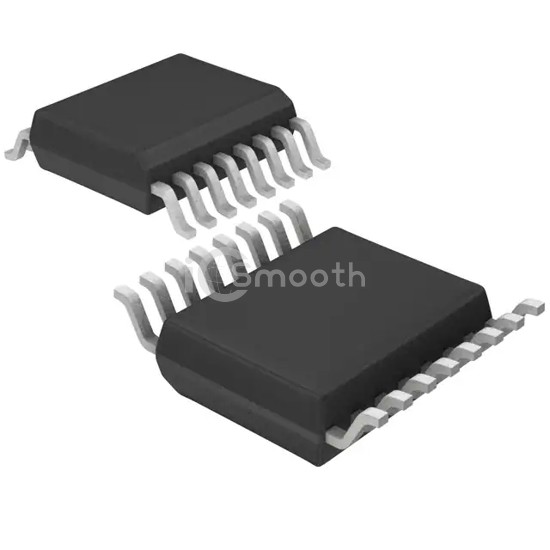

ACPL-32JT-500E

Broadcom Limited

OPTOISO 5KV 1CH GATE DRVR 16SOIC

ACPL-32JT-500E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 5KV 1CH GATE DRVR 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.55V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,663

Tiered Pricing USD
850+ $5.3363 —
1,700+ $5.1734 -3% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)30kV/µs
Propagation Delay tpLH / tpHL (Max)250ns, 250ns
Pulse Width Distortion (Max)140ns
Rise / Fall Time (Typ)70ns, 35ns
Current - Output High, Low750mA, 1A
Current - Peak Output2.5A
Voltage - Forward (Vf) (Typ)1.55V
Current - DC Forward (If) (Max)20 mA
Voltage - Output Supply18V ~ 22V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SOIC
Approval AgencyCSA, IEC/EN/DIN, UR
