Name: ACPL-302J-000E
Brand: Broadcom Limited
SKU: ACPL-302J-000E
Price: 7.22 USD
Availability: InStock

REF: ACPL-302J-000E Broadcom Limited

ACPL-302J-000E

Broadcom Limited

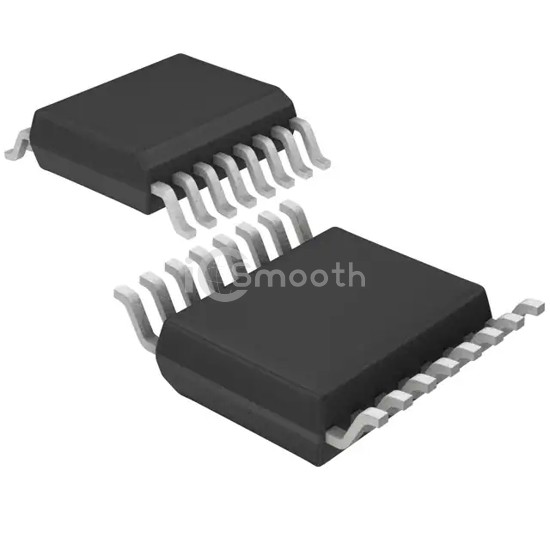

OPTOISO 5KV 1CH GATE DRIVER 16SO

ACPL-302J-000E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 5KV 1CH GATE DRIVER 16SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.55V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 2,568

Tiered Pricing USD

1+ $7.2200 —

45+ $4.7856 -34%

135+ $4.4018 -39%

540+ $4.0950 -43% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	30kV/µs
Propagation Delay tpLH / tpHL (Max)	250ns, 250ns
Pulse Width Distortion (Max)	140ns
Rise / Fall Time (Typ)	70ns, 35ns
Current - Output High, Low	750mA, 1A

Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	20 mA
Voltage - Output Supply	18V ~ 22V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
Approval Agency	CSA, IEC/EN/DIN, UR
