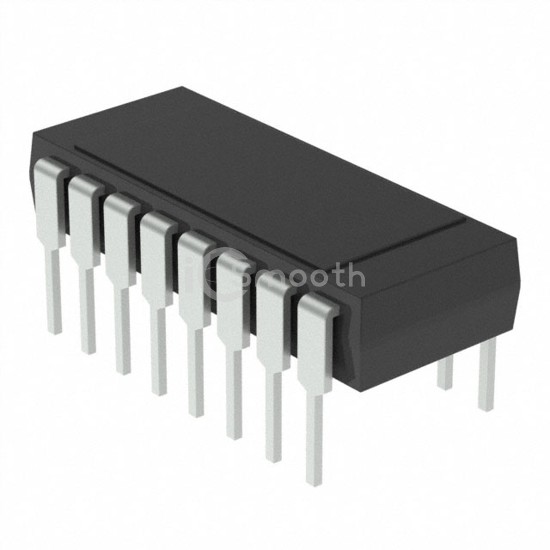

ACPL-268KL

OPTOISO 1.5KV 2CH OPEN COL 16DIP

ACPL-268KL is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 1.5KV 2CH OPEN COL 16DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply 3V ~ 3.6V, package / case 16-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 4,055

Tiered Pricing USD

6+ $581.2517 —

10+ $570.5410 -2% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	1500VDC
Common Mode Transient Immunity (Min)	1kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	25 mA
Data Rate	10MBd

Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Rise / Fall Time (Typ)	20ns, 8ns
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	3V ~ 3.6V
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	16-CDIP (0.300", 7.62mm)
Supplier Device Package	16-CDIP
