Name: ACPL-247-560E
Brand: Broadcom Limited
SKU: ACPL-247-560E
Price: 2.28 USD
Availability: InStock

REF: ACPL-247-560E Broadcom Limited

ACPL-247-560E

Broadcom Limited

OPTOISO 3KV 4CH TRANS 16SOIC

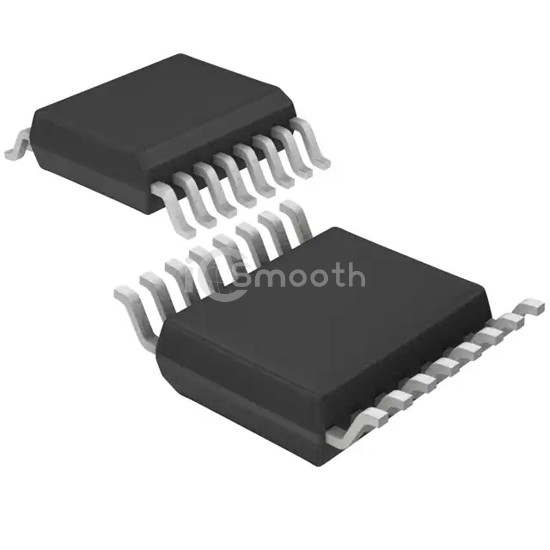

ACPL-247-560E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 3KV 4CH TRANS 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 16-SOIC (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 3,764

Tiered Pricing USD

1+ $2.2800 —

10+ $1.6450 -28%

100+ $1.2627 -45%

500+ $1.0943 -52%

1,000+ $1.0395 -54% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	4
Voltage - Isolation	3000Vrms
Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	3µs, 3µs
Rise / Fall Time (Typ)	2µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.173", 4.40mm Width)
Supplier Device Package	16-SO
