Name: ACPL-224-500E
Brand: Broadcom Limited
SKU: ACPL-224-500E
Price: 1.46 USD
Availability: InStock

REF: ACPL-224-500E Broadcom Limited

ACPL-224-500E

Broadcom Limited

OPTOISOLATOR 3KV 2CH TRANS 8SOIC

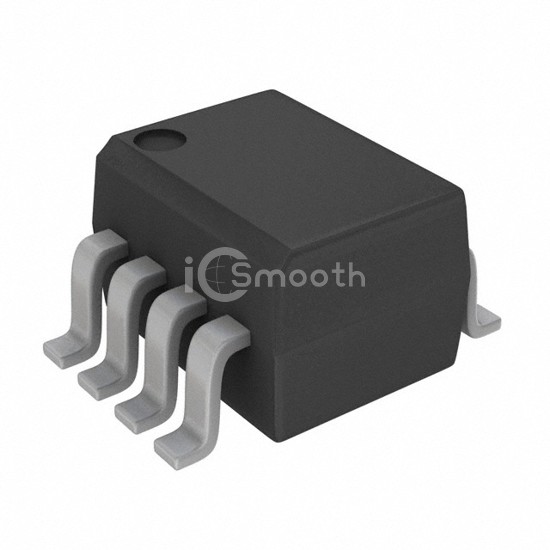

ACPL-224-500E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISOLATOR 3KV 2CH TRANS 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 8-SOIC (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 9,900

Tiered Pricing USD

1+ $1.4600 —

10+ $1.0340 -29%

100+ $0.7770 -47%

500+ $0.6632 -55%

1,000+ $0.6260 -57% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Voltage - Isolation	3000Vrms
Current Transfer Ratio (Min)	20% @ 1mA
Current Transfer Ratio (Max)	400% @ 1mA
Turn On / Turn Off Time (Typ)	3µs, 3µs
Rise / Fall Time (Typ)	2µs, 3µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.173", 4.40mm Width)
Supplier Device Package	8-SO
