Name: ACPL-177KL-100
Brand: Broadcom Limited
SKU: ACPL-177KL-100
Price: 684.88 USD
Availability: InStock

REF: ACPL-177KL-100 Broadcom Limited

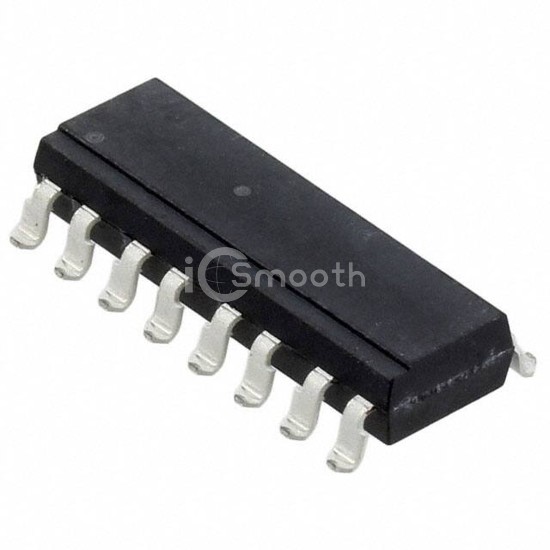

ACPL-177KL-100

Broadcom Limited

OPTOISO 1.5KV 4CH DARL 16-DIP BJ

ACPL-177KL-100 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 1.5KV 4CH DARL 16-DIP BJ. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.4V, package / case 16-SMD, Butt Joint.

Datasheet Request a Quote

In Stock: 7,845

Tiered Pricing USD

5+ $684.8840 —

10+ $668.2270 -2% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	4
Voltage - Isolation	1500VDC
Current Transfer Ratio (Min)	200% @ 5mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	2µs, 6µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	20V
Current - Output / Channel	40mA
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	10 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SMD, Butt Joint
Supplier Device Package	16-DIP Butt Joint
