ACPL-1772L-100

In Stock: 3,331
ACPL-1772L-100 - Broadcom Limited - Optoisolators - Transistor, Photovoltaic Output
REF: ACPL-1772L-100 Broadcom Limited

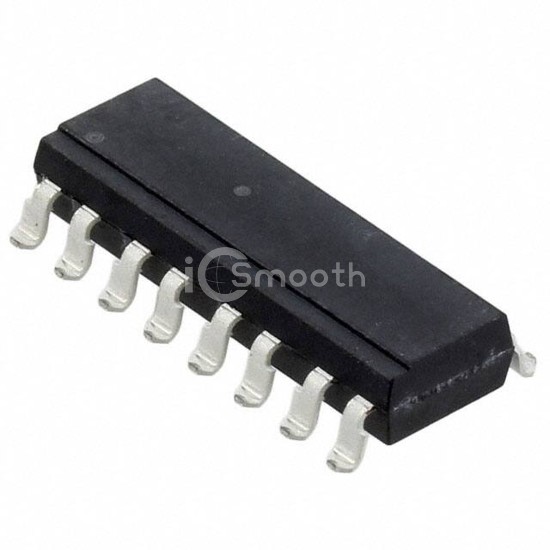

ACPL-1772L-100

Broadcom Limited

OPTOISO 1.5KV 4CH DARL 16-DIP BJ

ACPL-1772L-100 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 1.5KV 4CH DARL 16-DIP BJ. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.4V, package / case 16-SMD, Butt Joint.

Datasheet Request a Quote

In Stock: 3,331

Specifications

18 parameters
Product StatusActive
Number of Channels4
Voltage - Isolation1500VDC
Current Transfer Ratio (Min)200% @ 5mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)2µs, 6µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeDarlington
Voltage - Output (Max)20V
Current - Output / Channel40mA
Voltage - Forward (Vf) (Typ)1.4V
Current - DC Forward (If) (Max)10 mA
Vce Saturation (Max)-
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SMD, Butt Joint
Supplier Device Package16-DIP Butt Joint
