Name: ACPL-1770L-200
Brand: Broadcom Limited
SKU: ACPL-1770L-200
Price: 89.88 USD
Availability: InStock

REF: ACPL-1770L-200 Broadcom Limited

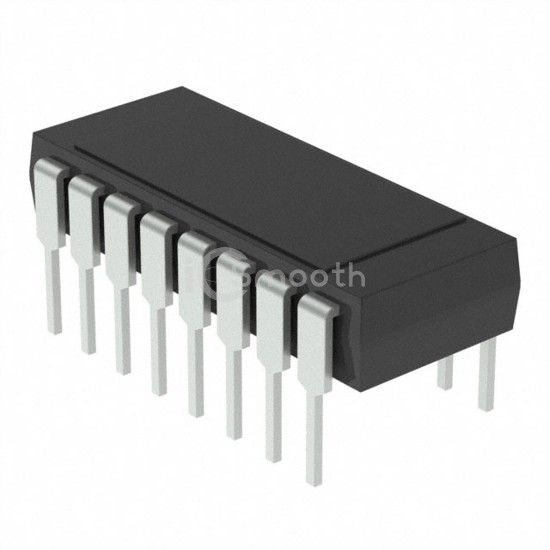

ACPL-1770L-200

Broadcom Limited

OPTOISO 1.5KV 4CH DARLNG 16-DIP

ACPL-1770L-200 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 1.5KV 4CH DARLNG 16-DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.4V, package / case 16-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,621

Specifications

18 parameters

Product Status	Active
Number of Channels	4
Voltage - Isolation	1500VDC
Current Transfer Ratio (Min)	200% @ 5mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	2µs, 6µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	20V
Current - Output / Channel	40mA
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	10 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	16-CDIP (0.300", 7.62mm)
Supplier Device Package	16-CDIP
