Name: ACNW3190-000E
Brand: Broadcom Limited
SKU: ACNW3190-000E
Price: 6.16 USD
Availability: InStock

REF: ACNW3190-000E Broadcom Limited

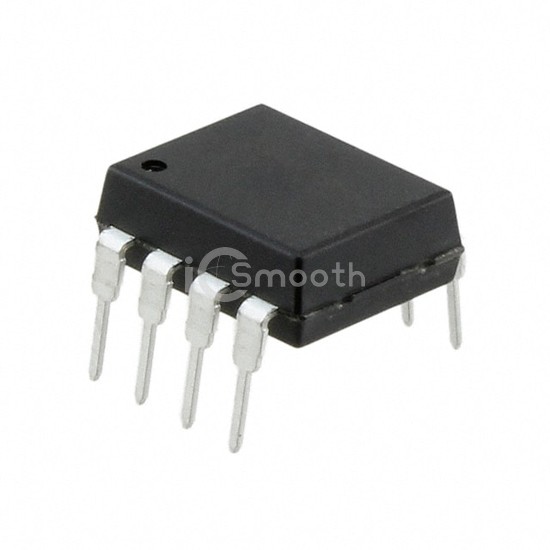

ACNW3190-000E

Broadcom Limited

OPTOISO 5KV 1CH GATE DRIVER 8DIP

ACNW3190-000E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 5KV 1CH GATE DRIVER 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.6V, package / case 8-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 1,142

Tiered Pricing USD

1+ $6.1600 —

42+ $4.0119 -35%

126+ $3.6615 -41%

504+ $3.3322 -46%

1,008+ $3.2045 -48%

2,016+ $3.0965 -50% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	15kV/µs
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Pulse Width Distortion (Max)	300ns
Rise / Fall Time (Typ)	100ns, 100ns
Current - Output High, Low	4A, 4A

Current - Peak Output	5A
Voltage - Forward (Vf) (Typ)	1.6V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.400", 10.16mm)
Supplier Device Package	8-DIP
Approval Agency	CSA, IEC/EN/DIN, UR
