ACNV4506-500E

In Stock: 3,483
ACNV4506-500E - Broadcom Limited - Optoisolators - Logic Output
REF: ACNV4506-500E Broadcom Limited

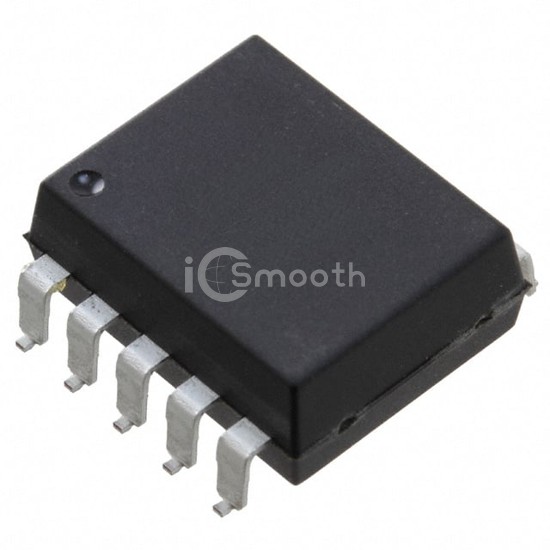

ACNV4506-500E

Broadcom Limited

OPTOISO 7.5KV OPEN COLL 10DIP GW

ACNV4506-500E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 7.5KV OPEN COLL 10DIP GW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 4.5V ~ 30V, package / case 10-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 3,483

Tiered Pricing USD
1+ $5.7600 —
10+ $4.3150 -25%
100+ $3.4632 -40% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation7500Vrms
Common Mode Transient Immunity (Min)30kV/µs
Input TypeDC
Output TypeOpen Collector, Schottky Clamped
Current - Output / Channel15 mA
Data Rate-
Propagation Delay tpLH / tpHL (Max)550ns, 400ns
Rise / Fall Time (Typ)-
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)25mA
Voltage - Supply4.5V ~ 30V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case10-SMD, Gull Wing
Supplier Device Package10-DIP Gull Wing
