Name: ACNV4506-300E
Brand: Broadcom Limited
SKU: ACNV4506-300E
Price: 5.33 USD
Availability: InStock

REF: ACNV4506-300E Broadcom Limited

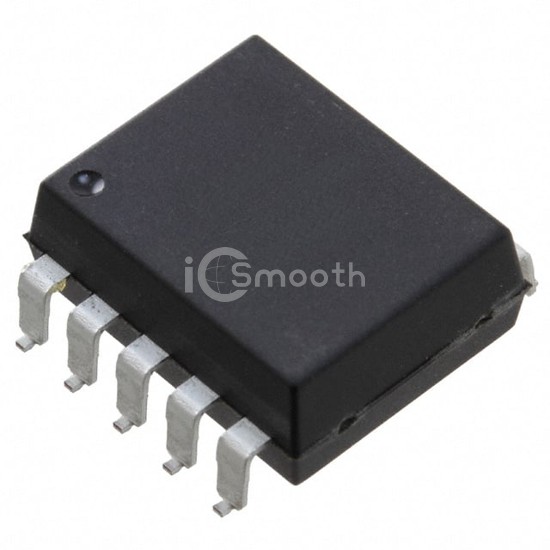

ACNV4506-300E

Broadcom Limited

OPTOISO 7.5KV OPEN COLL 10DIP GW

ACNV4506-300E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 7.5KV OPEN COLL 10DIP GW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 4.5V ~ 30V, package / case 10-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 8,409

Tiered Pricing USD

1+ $5.3300 —

35+ $3.4874 -35%

105+ $3.1643 -41%

525+ $2.8202 -47%

1,015+ $2.7134 -49%

2,030+ $2.6180 -51% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	7500Vrms
Common Mode Transient Immunity (Min)	30kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	15 mA
Data Rate	-

Propagation Delay tpLH / tpHL (Max)	550ns, 400ns
Rise / Fall Time (Typ)	-
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	4.5V ~ 30V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	10-SMD, Gull Wing
Supplier Device Package	10-DIP Gull Wing
