ACNV3130-300E

In Stock: 4,318
ACNV3130-300E - Broadcom Limited - Isolators - Gate Drivers
REF: ACNV3130-300E Broadcom Limited

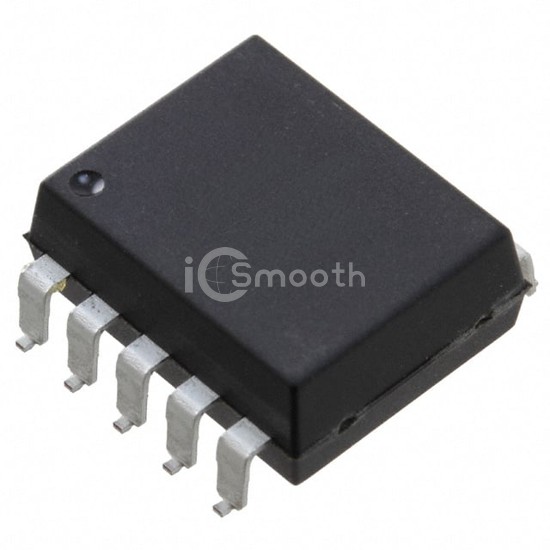

ACNV3130-300E

Broadcom Limited

OPTOISO 7.5KV GATE DRVR 10DIP GW

ACNV3130-300E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 7.5KV GATE DRVR 10DIP GW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.6V, package / case 10-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 4,318

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation7500Vrms
Common Mode Transient Immunity (Min)40kV/µs
Propagation Delay tpLH / tpHL (Max)500ns, 500ns
Pulse Width Distortion (Max)300ns
Rise / Fall Time (Typ)100ns, 100ns
Current - Output High, Low2A, 2A
Current - Peak Output2.5A
Voltage - Forward (Vf) (Typ)1.6V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case10-SMD, Gull Wing
Supplier Device Package10-DIP Gull Wing
Approval AgencyCSA, IEC/EN/DIN, UR
