Name: ACNV3130-000E
Brand: Broadcom Limited
SKU: ACNV3130-000E
Price: 7.48 USD
Availability: InStock

REF: ACNV3130-000E Broadcom Limited

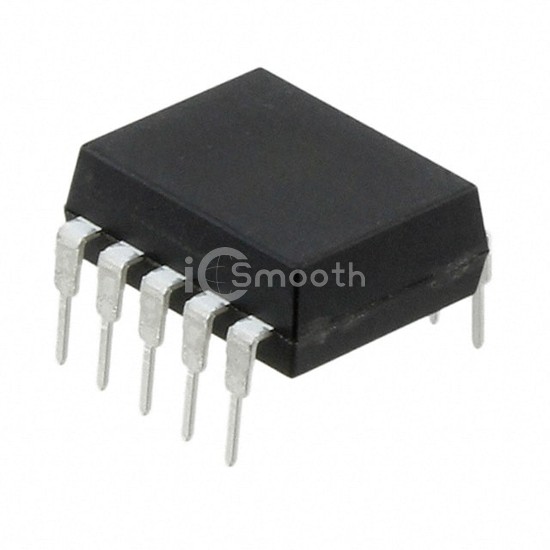

ACNV3130-000E

Broadcom Limited

OPTOISO 7.5KV 1CH GATE DVR 10DIP

ACNV3130-000E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 7.5KV 1CH GATE DVR 10DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.6V, package / case 10-DIP (0.512", 13.01mm).

Datasheet Request a Quote

In Stock: 4,118

Tiered Pricing USD

1+ $7.4800 —

10+ $5.6640 -24%

175+ $4.4197 -41%

525+ $4.1267 -45%

1,050+ $3.9781 -47%

2,100+ $3.8524 -48% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	7500Vrms
Common Mode Transient Immunity (Min)	40kV/µs
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Pulse Width Distortion (Max)	300ns
Rise / Fall Time (Typ)	100ns, 100ns
Current - Output High, Low	2A, 2A

Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.6V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	10-DIP (0.512", 13.01mm)
Supplier Device Package	10-DIP
Approval Agency	CSA, IEC/EN/DIN, UR
