ACNV260E-500E - Broadcom Limited - Optoisolators - Logic Output
REF: ACNV260E-500E Broadcom Limited
ACNV260E-500E

Broadcom Limited

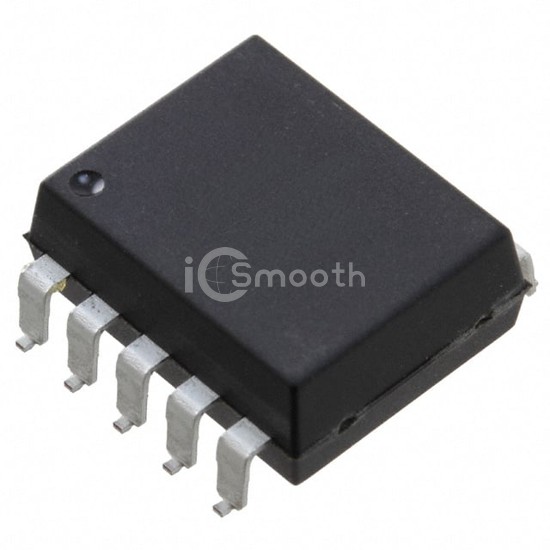

OPTOISO 5KV OPEN COLL 10DIP GW

ACNV260E-500E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 5KV OPEN COLL 10DIP GW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 4.5V ~ 5.5V, package / case 10-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,823

Tiered Pricing USD
1+ $11.4800 —
10+ $8.8740 -23%
100+ $7.3522 -36% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)20kV/µs
Input TypeDC
Output TypeOpen Collector, Schottky Clamped
Current - Output / Channel50 mA
Data Rate10MBd
Propagation Delay tpLH / tpHL (Max)80ns, 80ns
Rise / Fall Time (Typ)25ns, 10ns
Voltage - Forward (Vf) (Typ)1.64V
Current - DC Forward (If) (Max)20mA
Voltage - Supply4.5V ~ 5.5V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case10-SMD, Gull Wing
Supplier Device Package10-DIP Gull Wing
