Name: ACNV260E-000E
Brand: Broadcom Limited
SKU: ACNV260E-000E
Price: 11.44 USD
Availability: InStock

REF: ACNV260E-000E Broadcom Limited

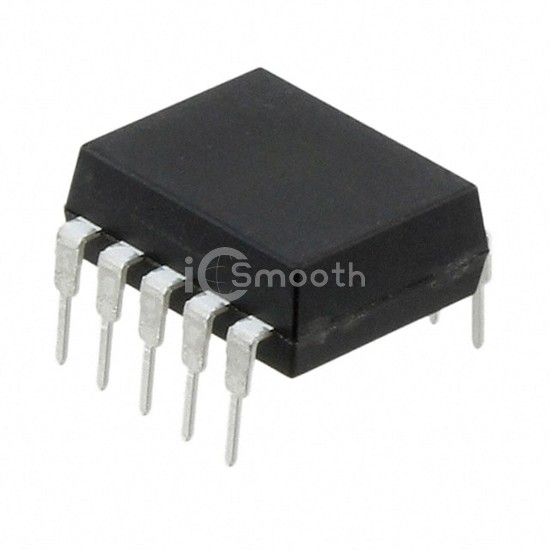

ACNV260E-000E

Broadcom Limited

OPTOISO 5KV OPEN COLLECTOR 10DIP

ACNV260E-000E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 5KV OPEN COLLECTOR 10DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - supply 4.5V ~ 5.5V, package / case 10-DIP (0.512", 13.01mm).

Datasheet Request a Quote

In Stock: 4,130

Tiered Pricing USD

1+ $11.4400 —

35+ $7.9094 -31%

105+ $7.2953 -36%

525+ $6.6433 -42%

1,015+ $6.4413 -44% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	50 mA
Data Rate	10MBd

Propagation Delay tpLH / tpHL (Max)	80ns, 80ns
Rise / Fall Time (Typ)	25ns, 10ns
Voltage - Forward (Vf) (Typ)	1.64V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	10-DIP (0.512", 13.01mm)
Supplier Device Package	10-DIP
